1.Product introduction of complex co extrusion plastic profile.
We are a plastic extrusion factory, which make complex co extrusion plastic profiles. Co extrusion is the process of combining two or more plastic material into a single custom plastic profile. It will help you to achieve properties that could not otherwise be attained. Co extrusion is ideal when the requirements of a design cannot be satisfied by a single material.
How Co-Extrusion Works
In the co-extrusion process, multiple extruders feed different plastic materials into a specially designed die. As the materials pass through the die, they are shaped and bonded together under controlled temperature and pressure. The result is a single profile where each material layer maintains its original properties while forming a permanent bond with adjacent layers.
This process allows manufacturers to combine materials that would otherwise require separate production runs and secondary assembly. A rigid PVC core, for example, can be extruded simultaneously with a flexible TPE seal, producing a finished profile in one continuous operation.
Co-Extrusion vs. Tri-Extrusion
While standard co-extrusion combines two materials, tri-extrusion takes this capability further by incorporating three distinct materials into a single profile. This advanced technique enables more complex designs, such as profiles featuring a structural core, a decorative outer layer, and an integrated functional seal.
Both processes eliminate the need for adhesives, mechanical fasteners, or post-production bonding steps that can add cost and introduce potential failure points.
2.Product specification of complex co extrusion plastic profile.
| Material | Rigid and flexible transparent PVC. We often utilize ABS, flexible PVC, rigid PVC, Acrylic, Polycarbonate and TPE |
| Fabrication | We provide plastic extrusion and post-extrusion fabrication to assist customers to efficiently produce their products and reduce their supply-chain. We routinely provide cutting, drilling, assembly and packaging services and a lot more. |
| Tooling | We use in-house tooling design and tooling processing for quality plastic profiles. Any standard profile or custom-made profiles are available. |
| Extrusion size | We can extrude large size and complex shape plastic profiles from several mm to 500mm cross section profile. We can even do custom-made material to meet your requirements. |
| Extrusion line | 45 |
Materials We Process for Co-Extrusion
Our facility processes a wide range of thermoplastics suitable for co-extrusion applications:
| Material | PVC | ABS | PC | PMMA | TPE | TPU | PP | PE | PS | HIPS | POM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Full Name | Polyvinyl Chloride | Acrylonitrile Butadiene Styrene | Polycarbonate | Acrylic | Thermoplastic Elastomer | Thermoplastic Polyurethane | Polypropylene | Polyethylene | Polystyrene | High Impact Polystyrene | Polyoxymethylene |
Common Material Combinations
Successful co-extrusion requires compatible materials that bond well during the extrusion process. Our engineering team regularly works with these proven combinations:
Rigid PVC + Flexible PVC: Structural frames with integrated soft seals
Rigid PVC + TPE: Durable profiles with cushioned edges or grip surfaces
Clear PC + Opal PC: Light diffusers with precise optical control
ABS + TPE: Impact-resistant housings with soft-touch exteriors
PMMA + ABS: Clear display components with opaque structural backing
3.Market of complex co extrusion plastic profile we serviced.
Automotive, computer accessories, door and window, electronics, lighting, medical, office partitions, refrigeration, decoration, signage and display products…
Industries We Serve with Co-Extruded Profiles
- Lighting LED diffusers, linear lamp housings, decorative trim profiles
- Retail & POP Display Price tag holders, shelf edge strips, promotional display frames
- Automotive Weather seals, interior trim, wire harness protection
- Construction & Building Window and door frames, decorative moldings, weatherstripping
- Refrigeration Door gaskets, shelf edge trim, compartment seals
- Electronics Cable management channels, equipment housings, edge protection
- Signage Illuminated sign frames, channel letter returns, wayfinding system components
- Medical Equipment enclosures, protective covers, device housings
- Furniture Edge banding, decorative trim, hinge profiles
4.Product pictures:
Rigid and flexible PVC coextrusion profile for POP display
Transparent rigid and soft PVC coextruded plastic profile for POP display

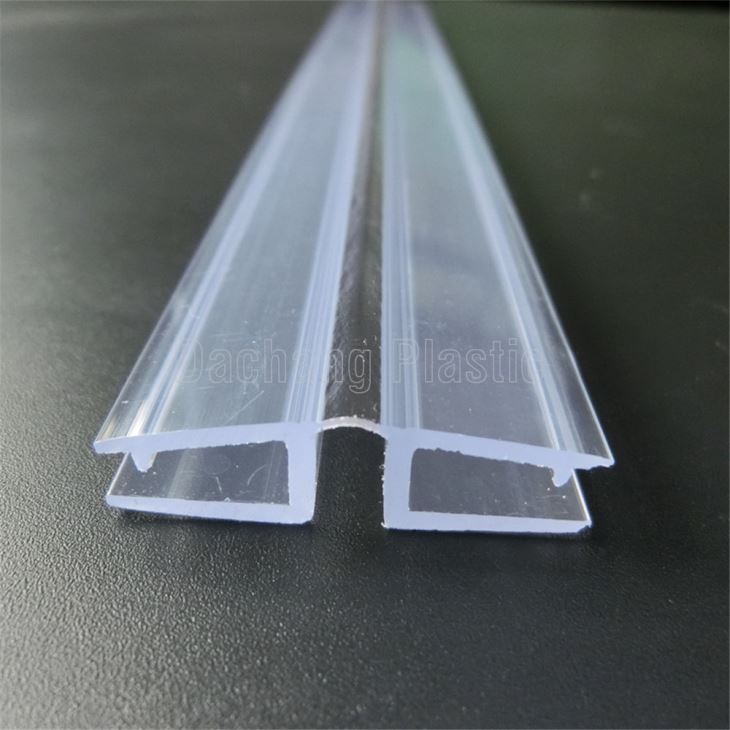

Rigid and flexible PVC coextrusion hinge profile for holding acrylic board or glass
Why Choose Dachang for Co-Extrusion
Our Co-Extrusion Capabilities
Rapid Tooling Development
Our in-house tooling department designs and manufactures custom extrusion dies. For standard complexity profiles, we can deliver production-ready tooling within 72 hours, significantly reducing your project timeline.
Production Scale
With 45 extrusion lines dedicated to profile manufacturing, we maintain the capacity to handle both prototype quantities and high-volume production runs without compromising delivery schedules.
Size Range
Our equipment accommodates profiles ranging from a few millimeters to 500mm in cross-section width. This capability allows us to produce everything from precision small-scale components to large architectural profiles.
Complete Post-Processing
Beyond extrusion, we offer comprehensive secondary operations including precision cutting to length, drilling, punching, bending, assembly, and custom packaging. These services help consolidate your supply chain and reduce the number of vendors you need to manage.
Material Expertise
Our engineering team has extensive experience with material selection and compatibility. We can recommend optimal material combinations based on your application requirements, helping you balance performance needs with cost considerations.
Quality Assurance
Each production run undergoes dimensional inspection and visual quality checks. We maintain detailed production records and can provide material certifications and test reports upon request.
FAQ
Q: What is the difference between co-extrusion and standard extrusion?
A: Standard extrusion processes a single material through a die to create a profile with uniform composition throughout. Co-extrusion uses multiple extruders feeding different materials into a specialized die, producing a profile with two or more distinct material layers bonded together. This allows you to combine different properties, such as rigidity and flexibility, in a single profile without secondary assembly.
Q: What materials can be combined in co-extrusion?
A: The key requirement is material compatibility, specifically similar processing temperatures and the ability to form a strong bond during extrusion. Common successful combinations include rigid PVC with flexible PVC, rigid PVC with TPE, and clear polycarbonate with opal polycarbonate. Our team can advise on compatibility for your specific application needs.
Q: How much does custom co-extrusion tooling cost?
A: Tooling costs depend on profile complexity, size, and the number of material channels required. Simple two-material co-extrusion dies for small profiles can start under $1,000. More complex designs with larger dimensions or three-material configurations will have higher tooling investments. We provide detailed quotations after reviewing your profile drawings.
Q: What is your typical lead time?
A: For tooling, standard complexity dies can be ready within 72 hours. Production lead times vary based on order quantity and current schedule, but typical orders ship within 2-3 weeks after tooling approval. We can accommodate rush requests when production capacity allows.
Q: What is your minimum order quantity?
A: We work with customers across a range of volumes, from prototype quantities to ongoing production programs. Minimum quantities depend on the specific profile and material requirements. Contact us with your project details for specific guidance.
Q: Can you match existing profiles or competitor samples?
A: Yes. If you have an existing profile you need replicated or improved, send us a sample or detailed drawings. Our engineering team can reverse-engineer the profile and provide tooling and production quotations.
Q: Do you provide design assistance?
A: Our engineering team can review your application requirements and suggest profile designs optimized for manufacturability and performance. We also identify potential issues early in the design phase to avoid costly tooling revisions later.
Q: What quality certifications do you hold?
A: Our facility maintains quality management systems and can provide material certifications, dimensional inspection reports, and compliance documentation for RoHS and REACH requirements upon request.
Co-Extrusion Benefits
Why Specify Co-Extruded Profiles
Combine Multiple Functions A single co-extruded profile can serve structural, sealing, and aesthetic functions simultaneously. This consolidation reduces part count and simplifies assembly.
Reduce Assembly Labor Profiles that previously required bonding, snapping together, or fastening separate components can often be replaced with a single co-extruded part, eliminating assembly steps and associated labor costs.
Improve Reliability The material bond created during co-extrusion is permanent and consistent throughout the profile length. Unlike adhesive bonds or mechanical joints, there are no potential separation points or fasteners that could loosen over time.
Optimize Material Costs Co-extrusion allows you to use premium materials only where their properties are needed. A profile might use a standard material for the bulk of its cross-section while incorporating a specialized material only at functional surfaces.
Achieve Complex Aesthetics Multi-color profiles, contrasting textures, or combinations of matte and gloss finishes can be produced in a single extrusion pass without painting, printing, or secondary finishing operations.
Maintain Design Flexibility The wide range of compatible material combinations and our ability to create custom die configurations means co-extrusion can address design challenges that would be difficult or impossible to solve with single-material profiles.
