Link the listed product or provide the drawing for an unlisted cross-section.

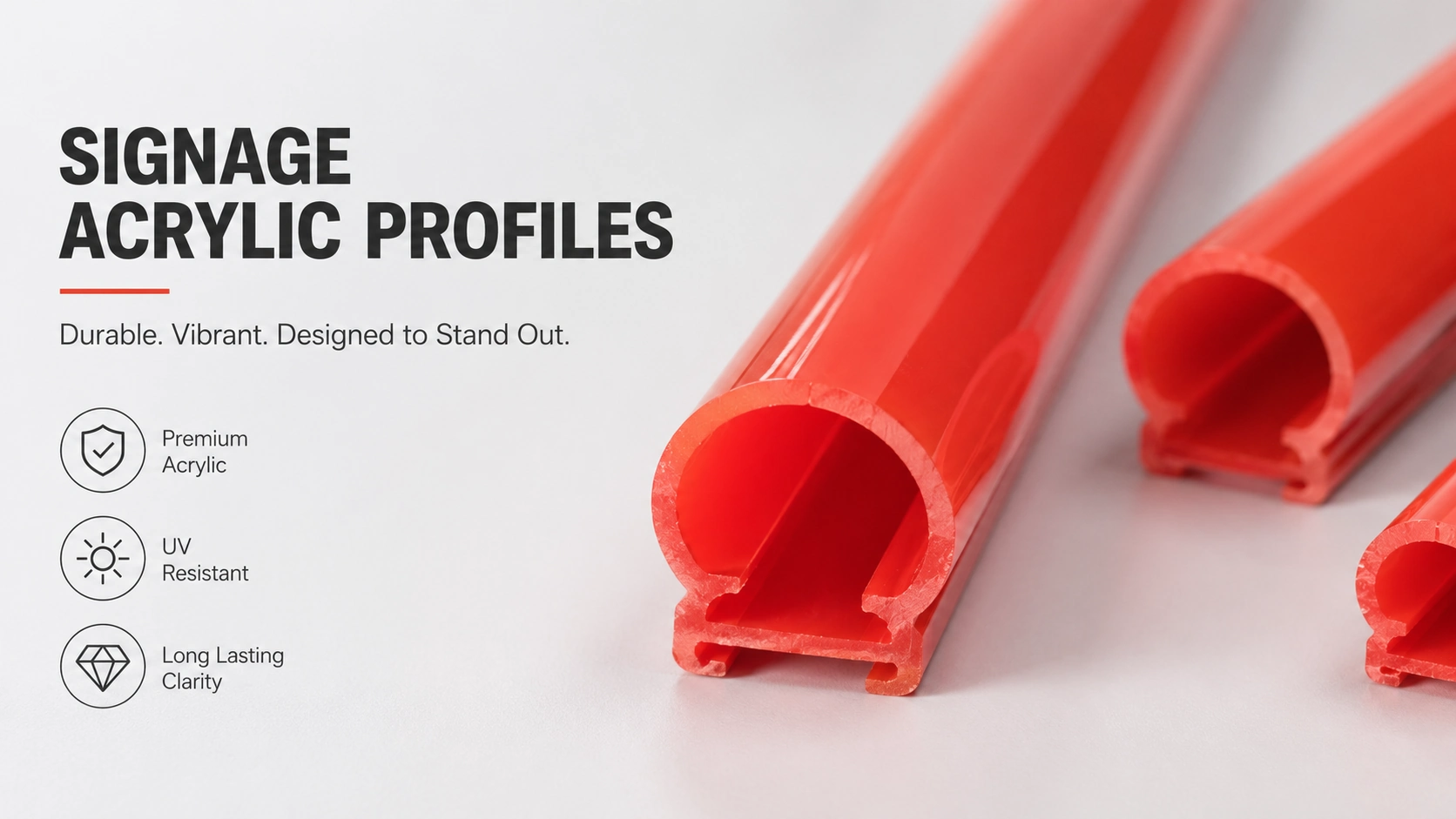

Signage Acrylic Profile
Signage Acrylic Profiles
Compare five Dachang signage profile products by material, width or cross-section, length and color. The published specifications differ by product, so dimensions and commercial terms are not applied across the whole category. Use the product cards and comparison table to identify a suitable starting profile, then open the matching product page or submit the drawing, quantity and application details for project-specific evaluation.
Collection
5 listed profile products
Published materials
PMMA, acrylic and one PC option
Selection fields
Geometry, length and color
Compare Published Product Specifications
A dash means the field was not published for that product. It is not an assumed zero value or an indication that the option is unavailable.
| Product | Material | Published size | Published length | Published color | Selection note |
|---|---|---|---|---|---|
| PMMA Profile Extrusion | Acrylic (PMMA) | 105 mm wide | 0.5–5 m | Green, gray | Standard or custom-made sizes listed |
| Extruded Acrylic Profiles | PMMA profile | — | — | Single or double color | Confirm dimensions for the requirement |
| Clear Acrylic Angle Profile | Acrylic (PMMA) | 40 mm wide | 0.5–5 m | Clear | Standard or custom-made sizes listed |
| Red Signage Acrylic Profile | Acrylic | 5–500 mm cross-section range | 1,500 or 2,700 mm | Red, yellow, blue, orange | Gas-station decoration application listed |
| Petro Station Signage Acrylic Profile | Acrylic or polycarbonate | 175 × 100 mm; 2 mm wall | 1,500 or 2,700 mm | Sample, Pantone or RAL reference | Material choice must be confirmed |
Information to Include in a Profile Inquiry
The collection page does not publish one category-wide MOQ, lead time or price. Provide the following inputs so commercial and technical conditions can be evaluated for the selected profile.
Identify the profile
STEP 01
Define dimensions
State the cross-section, wall thickness and required cut length.
STEP 02
Specify material and color
Include the material preference and any sample, Pantone or RAL reference.
STEP 03
Add purchasing inputs
Provide the required quantity, application and relevant packaging requirements.
STEP 04
Ready to submit the requirement?
Use Dachang’s existing inquiry page for product and project details.
Signage Profile Sourcing Questions
Are all five products made only from PMMA?
No. The PMMA Profile Extrusion and Clear Acrylic Angle Profile list acrylic (PMMA). The Petro Station Signage Acrylic Profile lists acrylic or polycarbonate, so material must be confirmed for that product.
Which products publish an exact width or cross-section?
The PMMA Profile Extrusion lists a 105 mm width, the Clear Acrylic Angle Profile lists a 40 mm width, and the Petro Station Signage Acrylic Profile lists a 175 × 100 mm cross-section with a 2 mm wall. The Red Signage Acrylic Profile publishes a 5–500 mm cross-section range rather than one section.
How can a color requirement be communicated?
The Petro Station Signage Acrylic Profile page explicitly lists color matching from a sample, Pantone code or RAL code. For another product, include the required color in the inquiry and request confirmation for that exact profile.
Is there one MOQ or lead time for the whole collection?
The collection page does not publish a category-wide MOQ or one lead time that applies to every product. Submit the selected profile, dimensions, quantity and project requirements so the applicable commercial conditions can be confirmed.
Preparing an RFQ?
Include the inputs needed to identify and evaluate the profile.
- Product link or cross-section drawing
- Material preference
- Dimensions and required length
- Color reference and application
- Required quantity
We are professional signage acrylic profile manufacturers and suppliers in China since 1998. Welcome to buy high quality customized signage acrylic profile made in China from our factory.
