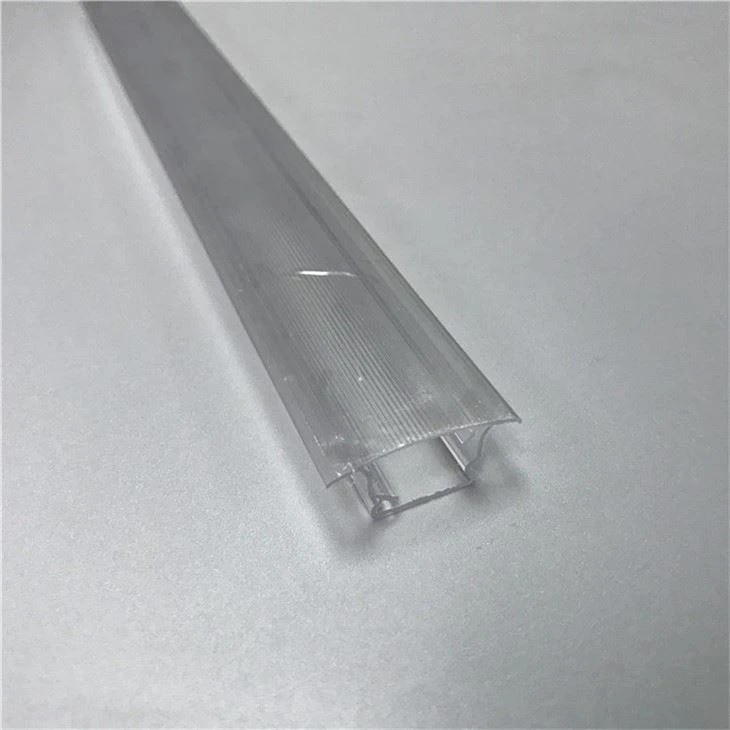

Premium Milky White Diffuser PC Profile
High-performance building-grade polycarbonate profiles for architectural and construction applications
Dachang's polycarbonate extruded profiles are precision-engineered building-grade PC profiles featuring a distinctive milky white diffuser finish. Unlike standard transparent or opaque polycarbonate profiles, our milky diffuser profiles provide optimal light transmission with soft, even light distribution-making them ideal for architectural glazing systems, glass partition edge trim, decorative building moldings, and interior light diffusion applications.
As a leading custom polycarbonate profile manufacturer with over 27 years of plastic extrusion expertise, we specialize in OEM/ODM production for global construction material suppliers, LED lighting fixture manufacturers, and building component distributors. Our advanced extrusion lines and in-house mold workshop enable 72-hour custom mold delivery-significantly faster than the industry average of 2-3 weeks.
What Makes Our PC Profiles Different?
Milky White Diffuser Finish
Unique light-diffusing surface provides 85%+ transmittance with uniform distribution-superior to standard frosted or clear PC profiles.
Ultra-Lightweight Design
At only 90g/meter, our profiles are 15-20% lighter than comparable products, reducing shipping costs and simplifying installation.
Precision Building Dimensions
28mm × 12mm cross-section engineered for standard glass partition systems and architectural edge trim applications.
Construction-Grade Durability
Virtually unbreakable polycarbonate material withstands mechanical stress in high-traffic building environments.
Technical Specifications
Complete product parameters and material properties
| Material | Virgin Polycarbonate (PC) Resin | Customizable: PC/ABS, UV-stabilized PC, Flame-retardant V-0/V-2 |
|---|---|
| Surface Finish | Milky White Diffuser | Customizable: Clear, Frosted, Matte, Opal, Custom Colors |
| Profile Height | 12mm | Customizable: 3mm - 150mm |
| Profile Width | 28mm | Customizable: 5mm - 300mm |
| Wall Thickness | 0.7mm | Customizable: 0.3mm - 5mm |
| Linear Weight | 90g/meter |
| Standard Length | 2m / 3m / Custom | Up to 6 meters continuous |
| Dimensional Tolerance | ±0.1mm | High-precision ±0.05mm available |
| Light Transmittance | 85-88% (diffused) | ASTM D1003 |
| Impact Strength | 600-850 J/m (Notched Izod) | ASTM D256 |
| Operating Temperature | -40°C to +120°C |
| Flammability Rating | V-2 (V-0 available) | UL 94 |
Key Features & Benefits
Why choose our polycarbonate extruded profiles
Superior Impact Resistance
200x the impact strength of glass and 30x that of acrylic. Virtually unbreakable for high-traffic environments.
Optimized Light Diffusion
Even light distribution without hotspots. 85%+ transmittance with uniform, glare-free illumination.
Excellent Thermal Stability
Operating range -40°C to +120°C for both extreme weather exteriors and high-heat interior installations.
Easy Fabrication
Cut, drill, bend, and form on-site with standard tools. Lightweight design simplifies handling and installation.
Electrical Insulation
High dielectric strength for electrical enclosures, cable management, and isolation applications.
UV & Weather Resistance
UV-stabilized formulations prevent yellowing and degradation for long-term exterior performance.
Industrial Applications
Serving diverse industries worldwide
Construction & Architecture
Glass partition edge trim
Curtain wall accessories
Decorative moldings
Skylight edge protection
Wall panel joints
01
LED Lighting Industry
LED strip diffuser channels
Linear light housings
Pendant lamp covers
Commercial lighting lens
Cabinet lighting covers
02
Retail & Display
Store fixture edge banding
Display cabinet trim
Shelf edge lighting
POP display components
Showcase frame profiles
03
Industrial & OEM
Machine guard profiles
Electrical enclosure trim
Equipment housings
Refrigeration cabinet trim
Medical device housings
04
OEM/ODM Manufacturing Services
Comprehensive custom production for global businesses
Custom Profile Design
Free DFM consultation. Send drawings, CAD files, or samples-we'll optimize for cost-effective production while maintaining precision.
Rapid Mold Fabrication
Industry-leading 72-hour mold delivery for standard profiles. In-house CNC workshop eliminates typical outsourcing delays.
Material Customization
Standard PC, UV-stabilized, flame-retardant (V-0/V-2), food-grade FDA, PC/ABS blends. Custom Pantone/RAL color matching.
Secondary Processing
Precision cutting, drilling, punching, bending, printing, hot stamping, adhesive tape, custom branded packaging.
Business Terms
| Minimum Order Quantity | 500m (custom) / 200m (standard) |
| Custom Mold Lead Time | 72 hours (standard) / 5-7 days (complex) |
| Sample Lead Time | 3-5 working days after mold |
| Production Lead Time | 7-15 working days |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Shipping | FOB Shenzhen/Guangzhou, CIF, DDP |
| Certifications | ISO 9001, RoHS, REACH, UL 94 |
FAQ
Q: What is the difference between polycarbonate and acrylic profiles?
A: Polycarbonate (PC) offers approximately 30x higher impact resistance than acrylic (PMMA). PC profiles are virtually unbreakable and maintain structural integrity under mechanical stress, making them ideal for safety-critical building applications. Acrylic provides better optical clarity and scratch resistance but is more brittle.
Q: Can you produce custom polycarbonate profile shapes?
A: Yes, we specialize in custom profile extrusion. Provide dimensional drawings (DWG, DXF, PDF, or hand sketches) or physical samples. We can produce complex geometries including hollow sections, multiple chambers, and co-extruded multi-material designs.
Q: What is the MOQ for custom polycarbonate profiles?
A: Minimum order for custom profiles is 500 meters. Standard catalog profiles start at 200 meters. Contact us to discuss sample orders for testing and validation before production runs.
Q: How long does custom mold fabrication take?
A: Standard-complexity molds complete within 72 hours-one of the fastest turnarounds in the industry. Complex profiles may require 5-7 working days. First samples are produced within 3-5 days after mold completion.
Q: What surface finishes are available?
A: We offer clear/transparent, milky white diffuser, frosted/matte, opal translucent, and opaque in standard or custom colors. Special finishes including textured, high-gloss polished, and soft-touch coatings are also available.
Q: Are your profiles suitable for outdoor use?
A: Yes, our UV-stabilized formulations are designed for exterior applications. UV stabilizers prevent yellowing and degradation from prolonged sun exposure, ensuring long-term clarity and performance.
