This guide assists original equipment manufacturer procurement managers and industrial engineers evaluating suppliers that specialize in polycarbonate extrusion. We break down tool economics, material failure modes, and secondary processing tolerances. These points provide a clear, data-driven framework for technical comparisons and buying decisions.
Why polycarbonate outperforms standard thermoplastics
Polycarbonate fills a specific engineering niche. Its physical properties handle heavy mechanical loads that break standard transparent polymers. Industrial buyers choose this resin when a part needs both optical clarity and structural strength under constant outdoor exposure. Crystalline plastics like polypropylene simply cannot match this mix of traits. Engineers have relied on its unique amorphous structure since its independent synthesis in 1953. Because of this structure, the material delivers reliable performance across harsh temperature changes and heavy impacts.

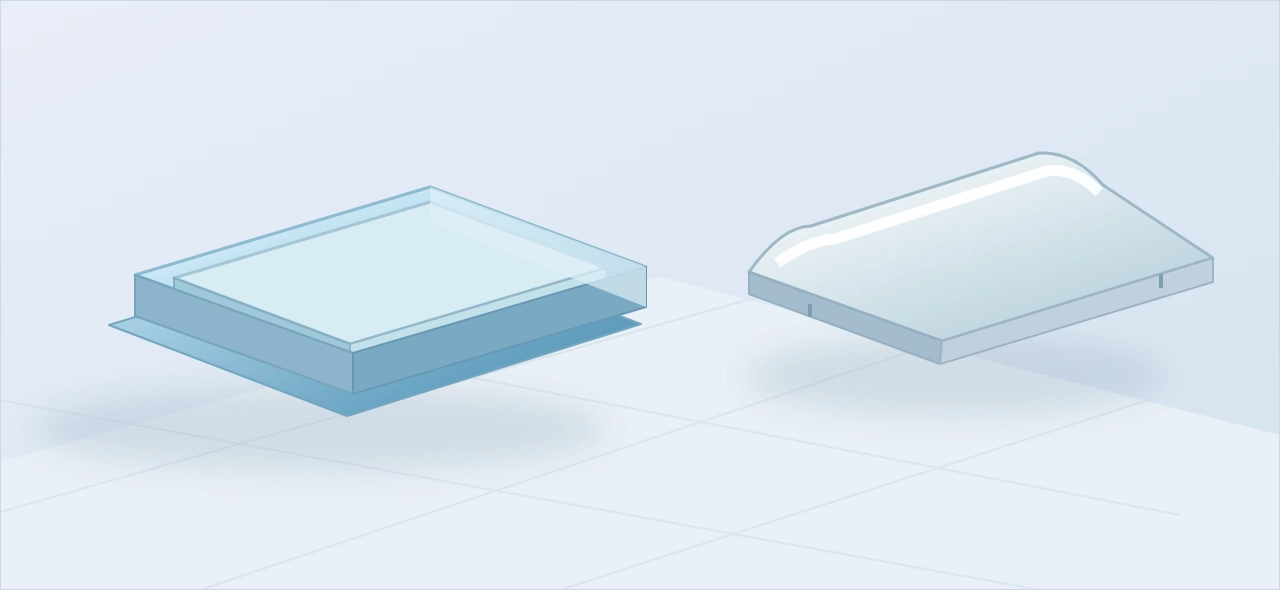

The material carries a refractive index of 1.59. This property makes it very effective for light diffusion profiles in commercial lighting fixtures, where light transmission shapes overall product performance. Designers use this high refractive index to steer light paths inside the extruded profile. This produces smooth, even lighting without showing the bright LED points underneath. Acrylic provides similar clarity, but it breaks under sudden mechanical shock. In contrast, polycarbonate absorbs impact energy through localized bending instead of shattering.
| Parameter / Metric | Operational Threshold | Practical Impact |
| Resin Moisture Limit | ≤0.02% | Prevents splay, bubbling, and hydrolytic degradation during melt. |
| Desiccant Drying | 120 °C for 2–4 hours | Establishes critical dryness before feeding raw resin into the hopper. |
| Die-End Temperature | 260–290 °C | Maintains correct melt viscosity to ensure uniform profile thickness. |
| Co-Extruded UV Cap Layer | 50–80 μm thickness | Prevents visible yellowing that otherwise occurs within 2–3 years of outdoor exposure. |
| Extrusion Line Speed | 10–200+ ft/min | Sets continuous manufacturing throughput for linear profiles. |
| Profile Dimension Range | 1/32" to 13" | Defines available cross-sectional size capability for continuous runs. |
| Tooling Cost Advantage | 60–80% lower | Reduces initial capital expenditure compared to standard injection molds. |
| Per-Piece Production Cost | 30–40% lower | Delivers piece-part cost reductions over injection molding for runs above several thousand units. |
| Extrusion Die Longevity | 5–15+ years | Provides extended tooling production life before die replacement. |
| Production Lead Time | 3–6 weeks | Standard turnaround window required for custom tooling fabrication and sample signoff. |
Engineers choose this material mainly for its durability. It delivers an impact resistance 250x compared to float glass. Carbonate groups within its polymer chain create this extreme toughness. They allow the molecular chain to flex and spread impact forces across a wider area. When a heavy object hits a polycarbonate profile, the material gives slightly and springs back to its original shape. This flexibility stops the rapid cracking that ruins standard plastic enclosures. We see this property used in machine guards, protective architectural glazing, and transit parts where safety rules demand shatterproof materials.

Comparing extrusion tooling costs against injection molding
Continuous linear profiles achieve lower unit costs through extrusion. However, the design must avoid complex three-dimensional shapes that require a closed mold cavity. Procurement managers evaluating a continuous cross-section can expect tooling costs 60–80% lower than injection molds. This large price difference comes down to tool design. An extrusion die is simply a flat steel plate with a two-dimensional profile cut through it. An injection mold requires two large blocks of hardened steel. Machinists must cut complex internal cooling channels, ejector pins, and 3D cavities into those blocks.
This tooling edge shifts the breakeven point for mid-volume production runs. Buyers modeling their procurement schedules see a 30–40% potential per-piece cost reduction with extruded profiles vs injection molding for volumes above a few thousand units. The continuous process removes the cycle time limits of opening and closing a mold. As a result, the plant can produce endless profile lengths at a steady material feed rate. Consider buyers set a minimum order quantity of roughly 3000 linear feet to absorb the setup scrap generated while the machine operator calibrates the line speed and temperature.
Procurement teams must also include tool wear in their long-term supplier agreements. Buyers can model a typical die life extending 5-15+ years depending on resin abrasiveness and supplier maintenance. Injection molds endure huge clamping forces and wear from moving parts. Extrusion dies, on the other hand, face only the steady friction of melted polymer flowing through the opening.
| Process Type | Tooling Cost Comparison | Applicable Geometry | Estimated Die Life |
| Custom Polycarbonate Extrusion | Baseline reference | Continuous linear profiles, tubes, channels | 5-15+ years |
| Standard Injection Molding | 60-80% higher than extrusion | Three-dimensional parts, closed ends, snap fits | 3-7 years |
| CNC Machined Plastics | Zero tooling cost | Low-volume complex structural components | Not applicable |
How moisture content causes hidden resin failures
Hydrolysis during the melting phase is the most common failure in polycarbonate processing. It is also completely preventable. It permanently damages the polymer chain before the profile even exits the die. Because the material contains moisture-sensitive ester bonds, operators must ensure a ≤0.02% required moisture content for PC resin before processing. When water enters the extruder barrel with the raw pellets, heat and pressure force a chemical reaction. This reaction breaks the long polymer chains into shorter pieces.
Reaching this moisture limit demands strict adherence to standard drying conditions in a desiccant dryer. Operators typically run these dryers at 120 °C for 2–4 hours. Plants in humid climates often need to extend this time. They must also verify that their dryer beds maintain a dew point of -40 °C to keep ambient moisture out of the resin. If a supplier tries to speed up drying by raising the temperature past 125 °C, the pellets will soften and fuse inside the hopper. This clogs the feed throat and stops the line.
| Parameter / Metric | Operational Threshold | Practical Impact |
| Die-End Temperature | 260–290 °C | Operators must maintain this melt temperature to ensure proper flow and prevent thermal degradation. |
| UV Cap Layer Thickness | 50–80 μm | Extruders apply this co-extruded layer to prevent outdoor photodegradation and surface chalking. |
| Unprotected Weathering Limit | 2–3 years | Profiles without UV stabilizers will exhibit noticeable yellowing within this operating timeframe. |
| Production Speed Range | 10–200+ feet per minute | Line operators can adjust puller speeds within this range depending on profile wall thickness. |
| Die Tooling Service Life | 5–15+ years | Tooling engineers can amortize extrusion die costs across extended production cycles before replacement. |
| Profile Dimension Range | 1/32" to 13" | Fabricators can specify cross-sectional extrusion designs within these minimum and maximum size boundaries. |
Engineers can separate moisture damage from trapped air by checking the profile surface under direct light. Moisture creates long silver streaks called splay along the extrusion path. Trapped air, by contrast, leaves round bubbles inside the profile wall. This chemical breakdown sharply reduces molecular weight. It turns an impact-resistant polymer into a brittle part that will crack during assembly or under light loads. We advise buyers to request moisture logs if a batch of profiles shows unexpected brittleness during assembly.
Controlling temperature and speed for dimensional tolerances
Dimensional precision depends on managing cooling and line tension as the material cools from a liquid to a solid. Operators must balance a 260–290 °C typical die-end temperature range against downstream cooling capacity. If the melt temperature drops below this range, high shear stress tears the molten plastic. This creates a rough, dull surface called sharkskin. If the temperature runs too high, the material loses its strength and sags before the vacuum sizing blocks can freeze its shape.
The production floor manages a 10-200+ feet per minute line speed range. Faster pull speeds thin the profile walls but increase internal stress. The exact speed depends heavily on profile mass and cooling tank length. A thick-walled structural channel needs a slow pull so heat can escape from the center. A thin-walled optical diffuser can run near the top of the speed range. When operators pull the material too fast, the polymer chains freeze in a stretched position. The profile will shrink lengthwise later when exposed to warm outdoor temperatures.
Suppliers handle a broad 1/32" to 13" range of plastic profile sizes. Each size requires dedicated vacuum sizing blocks and water tank temperatures to prevent uneven shrinkage. We suggest procurement engineers set standard wall thickness tolerances at ±0.15mm for general uses. Precision mating surfaces should hold a tighter ±0.05mm limit. Meeting these tighter tolerances requires gear pumps to control melt pressure and closed-loop laser micrometers to adjust puller speed automatically.
Specifying UV resistance and flame-retardant grades
Unmodified polycarbonate degrades under long outdoor exposure. It needs special cap layers or chemical additives to survive outdoor and high-voltage uses. Installations face a 2–3 years timeframe for visible yellowing of standard PC without UV protection in outdoor exposure. This shift is accompanied by a severe drop in impact strength from solar degradation. Ultraviolet light breaks chemical bonds on the surface. This creates microscopic cracks that act as stress points during mechanical impacts.
To prevent this issue, capable suppliers apply a 50–80 μm typical thickness of co-extruded UV-stabilized cap layer directly onto the base profile during the melt phase. This co-extrusion process uses a smaller secondary extruder. It feeds resin with a concentrated UV blocker into the main die block, bonding both streams before they leave the tooling. This method provides permanent protection without changing the physical properties of the thicker base profile. It also costs far less than blending UV additives into the entire resin batch. Buyers must make sure their assembly teams verify which side has the cap layer. Installing the profile backward leaves the base material exposed to direct sunlight.
Electrical enclosures require a different modification. Buyers must specify UL 94 V-0 flame-retardant grades so the material self-extinguishes within 10 seconds of catching fire. Standard polycarbonate carries a V-2 rating, meaning it will burn and drop flaming drips. That violates safety codes for switchgear and busbar insulation. Suppliers reach the V-0 rating by blending non-halogenated flame retardants into the base resin. However, this additive slightly lowers the clarity and impact resistance of the finished part.
Managing secondary machining and rapid prototyping
Post-extrusion machining requires specific cutting settings. These prevent heat buildup from melting the polymer or causing tiny cracks along the cut edges. Fabricators cutting standard panels often use a 144" X 80" CNC routering table size to fit large sheets and long profiles. When machining this resin, engineers suggest maintaining a minimum chip load of 0.002 inches. This ensures the cutting bit carries heat away with the chip instead of pushing it into the profile wall. If the feed rate runs too slow, friction melts the plastic onto the bit, ruining both the tool and the part.
Cold bending works well for sheet thicknesses under 3.175mm. Heavier gauges require localized strip heating to 150 °C to prevent cracking along the bend line. When drilling holes, operators should use drill bits with a 90-degree to 118-degree point angle and a zero-degree rake. This shape stops the bit from grabbing and splitting the plastic as it breaks through the bottom.
Before spending money on steel tooling, product teams often check complex shapes with 3D printing. Many maker community users report a 5:1 ratio as the recommended line width to nozzle size for PC printing to maximize layer adhesion. Official documentation does not specify this exact parameter. Strong layer bonding is critical for testing structural prototypes because printed parts often fail along the Z-axis under load. For large industrial prototypes, some high-end pellet printers reach a 1,500mm/second rapid travel speed for Atlas-H printer setups. This speed lets engineers test fit and clearances before cutting the final extrusion die.
Set CNC router spindle speeds between 18,000 and 24,000 RPM while maintaining a fast feed rate to prevent chip melting.
Limit cold bending to profiles thinner than 3.175mm, and over-bend by roughly 10 degrees to account for material spring-back.
Drill all mounting holes at least 2mm larger than the fastener diameter to accommodate the thermal expansion of the plastic.
Use compressed air rather than liquid coolants during machining to clear chips without introducing harsh chemicals to the cut surface.
Anneal heavily machined parts at 120 °C for one hour per millimeter of thickness to relieve internal stresses before deployment.
Mitigating field failures and environmental stress cracking
Despite its toughness, polycarbonate fails in the field at a high rate. These failures stem from stress cracking and thermal expansion limits. Industry a 1% approximate global resin consumption by weight for polycarbonate. Yet the material accounts for a 10–15% contribution of polycarbonate to documented field failure case studies. This gap shows a clear difference between ideal mechanical calculations and real-world chemical reactions.
These failures usually happen when parts contact harsh chemicals while under mechanical load. Environmental stress cracking occurs when a chemical lowers the energy needed to break polymer bonds. This causes the profile to craze and break well below its listed yield strength. Common causes include PVC plasticizers leaking from nearby rubber gaskets, thread-locking fluids on mounting bolts, and harsh cleaning chemicals. We advise buyers to check chemical compatibility charts for their specific operating conditions. They should also require barrier tapes if the profile touches flexible PVC parts.
Thermal expansion is the second major cause of field failures. The material expands roughly 0.065mm per meter for every degree Celsius rise in temperature. If an installer fastens a three-meter profile tightly to a steel frame in winter, the plastic will expand nearly ten millimeters during summer. The rigid frame blocks this growth, causing the plastic to buckle or crack around the mounting screws. Buyers must verify that manuals call for oversized clearance holes and soft neoprene washers. These allow the profile to expand freely without binding against fasteners.
Evaluating supplier lead times and production scalability
Choosing an extrusion partner requires checking actual shop-floor controls, machining limits, and quality certifications rather than simply reading an equipment list. Buyers planning a new launch should build a 3–6 weeks typical lead time for custom extrusion projects into their procurement schedule. This window covers die adjustments and initial sample signoff. The first sample rarely meets all dimensional limits. The die maker must tune the flow channels to account for resin swell as the profile leaves the die.
Evaluating a supplier involves checking their quality management framework, such as the ISO 9001:2015 certification status of Plastifab facility operations. This standard shows the plant tracks defects and logs raw materials. Without these records, buyers cannot trace root causes if a batch fails in the field from poor drying or mixed scrap. Volume scalability is also vital for global programs. This capacity is shown by operations like the 10 thousand tons per year total capacity of VULCAN PLASTICS extrusion lines. A supplier with high output can run specific resins on dedicated lines. This removes the risk of cross-contamination from purging machines between incompatible materials.
When issuing a Request for Quote, procurement teams must provide exact specifications rather than generic material callouts. Manufacturers like Dachang Plastic publish their capabilities to help buyers understand the difference between standard commercial runs and custom engineering guarantees. Consider submitting a detailed checklist alongside the engineering drawings to ensure all competing suppliers quote based on the same technical assumptions.
Specify the exact resin grade and manufacturer required, or list the mandatory physical properties if allowing the supplier to select the equivalent material.
Define the co-extrusion requirements, including the exact thickness of the UV cap layer and which external surfaces require coverage.
Provide a tolerance drawing that clearly distinguishes between critical mating dimensions requiring ±0.05mm precision and general wall thicknesses accepting ±0.15mm variance.
List all secondary processing requirements, detailing the exact locations for CNC routing, drilled clearance holes, and cut-to-length tolerances.
Establish the First Article Inspection reporting requirements, mandating that the supplier provide dimensional capability data and moisture content logs for the sample run.
